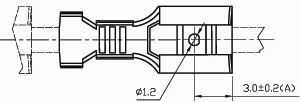

| Products ==> Terminal ==> 187 Series ==> 189 Series straight receptacles |
| กก |
|
|
 |
 |
 |
 |
| Part No | Applicable wire |
Fit Tab Thickness (mm) |
Material | Finish | Qty / Reel | Approval | |
| AWG | mm2 | ||||||
| RE1890503-40 | 20-16 | 0.5-1.3 | 0.5 | Steel | Nickel | 5000 | ---- |
| RE1890803-40 | 20-16 | 0.5-1.3 | 0.8 | Steel | Nickel | 5000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
