| Products => Terminal => LT003 Tab terminal series |
 |
|
 |
| Part No | Dimensions (mm) |
To fit receptacle width (mm) |
Material | Finish | Qty / Bag | Approval | |
| L | W | ||||||

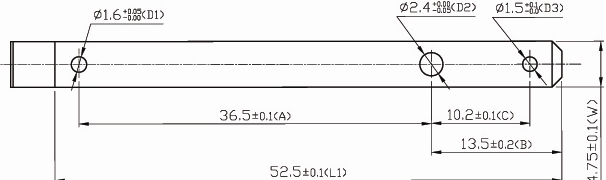

| LT0030506-50 | 52.5/5.0 | 4.75 | 4.8 | P.Bronze | Natural | 1000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
