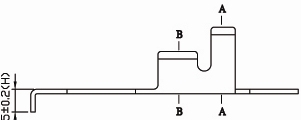

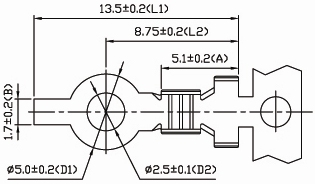

| Products => Terminal => RH500 Lock ring terminal series |
|
|
|
|
|
| Part No | Applicable wire | Material | Finish | Qty / Reel | Approval | |
| AWG | mm2 | |||||
| RH5002501-30 | 22-18 | 0.3-0.8 | Brass | Natural | 5000 | ---- |
| RH5002502-30 | 22-18 | 0.3-0.8 | Brass | Tinned | 5000 | ---- |
| RH5002503-30 | 22-18 | 0.3-0.8 | Steel | Nickel | 5000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
