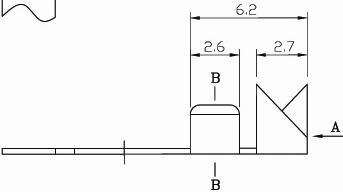

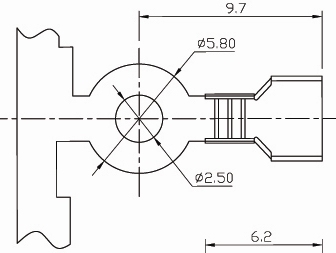

| Products => Terminal => RI580 ring terminals Series |
|
|
|
|
|
| Part No | Applicable wire | Diameter (mm) | Material | Finish | Qty / Reel | Approval | ||
| AWG | mm2 | OD | ID | |||||
| RI5802501-30 | 22-18 | 0.3-0.8 | 5.8 | 2.5 | Brass | Natural | 15000 | ---- |
| RI5802502-30 | 22-18 | 0.3-0.8 | 5.8 | 2.5 | Brass | Tinned | 15000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
