| Products => Terminal => RI601 ring terminals Series |
|
|
 |
|
| Part No | Applicable wire | Diameter(mm) | Material | Finish | Qty / Reel | Approval | ||
| AWG | mm2 | OD | ID | |||||

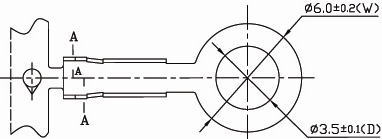

| RI6013501-36 | 26-34 | 0.13-0.2 | 6.0 | 3.5 | Brass | Natural | 10000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
