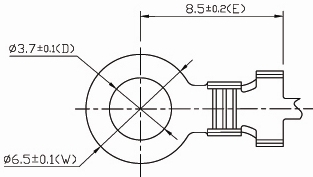

| Products => Terminal => RI65037 ring terminals Series |
|
|
 |
|
| Part No | Applicable wire | Diameter (mm) | Material | Finish | Qty / Reel | Approval | ||
| AWG | mm2 | OD | ID | |||||
| RI6503701-30 | 22-18 | 0.3-0.8 | 6.5 | 3.7 | Brass | Natural | 10000 | ---- |
| RI6503701-40 | 22-18 | 0.3-0.8 | 6.5 | 3.7 | Brass | Natural | 10000 | ---- |
| RI6503701-50 | 22-18 | 0.3-0.8 | 6.5 | 3.7 | Brass | Natural | 10000 | ---- |
| RI6503702-30 | 22-18 | 0.3-0.8 | 6.5 | 3.7 | Brass | Tinned | 10000 | ---- |
| RI6503702-40 | 22-18 | 0.3-0.8 | 6.5 | 3.7 | Brass | Tinned | 10000 | ---- |
| RI6503702-50 | 22-18 | 0.3-0.8 | 6.5 | 3.7 | Brass | Tinned | 10000 | ---- |
| RI6503703-40 | 22-18 | 0.3-0.8 | 6.5 | 3.7 | Steel | Nickel | 10000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
