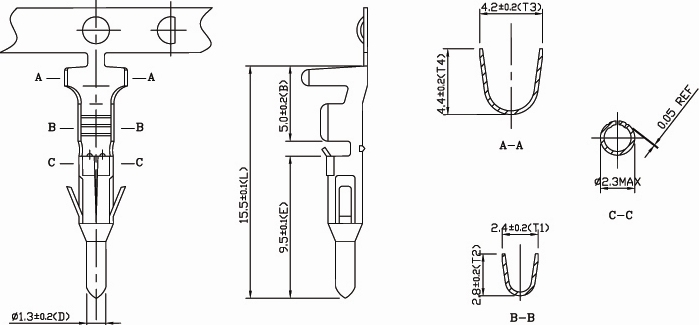

| Products => Terminal => RP190 Pin terminal Series |
|
|
| Part No | Applicable wire | Pin OD (mm) | Material | Finish | Qty / Reel | Approval | |
| AWG | mm2 | ||||||
| RP1901301-25 | 20-16 | 0.5-1.3 | 1.3 | Brass | Natural | 3500 | ---- |
| RP1901302-25 | 20-16 | 0.5-1.3 | 1.3 | Brass | Tinned | 3500 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
